SEALEVEL | PCI Express

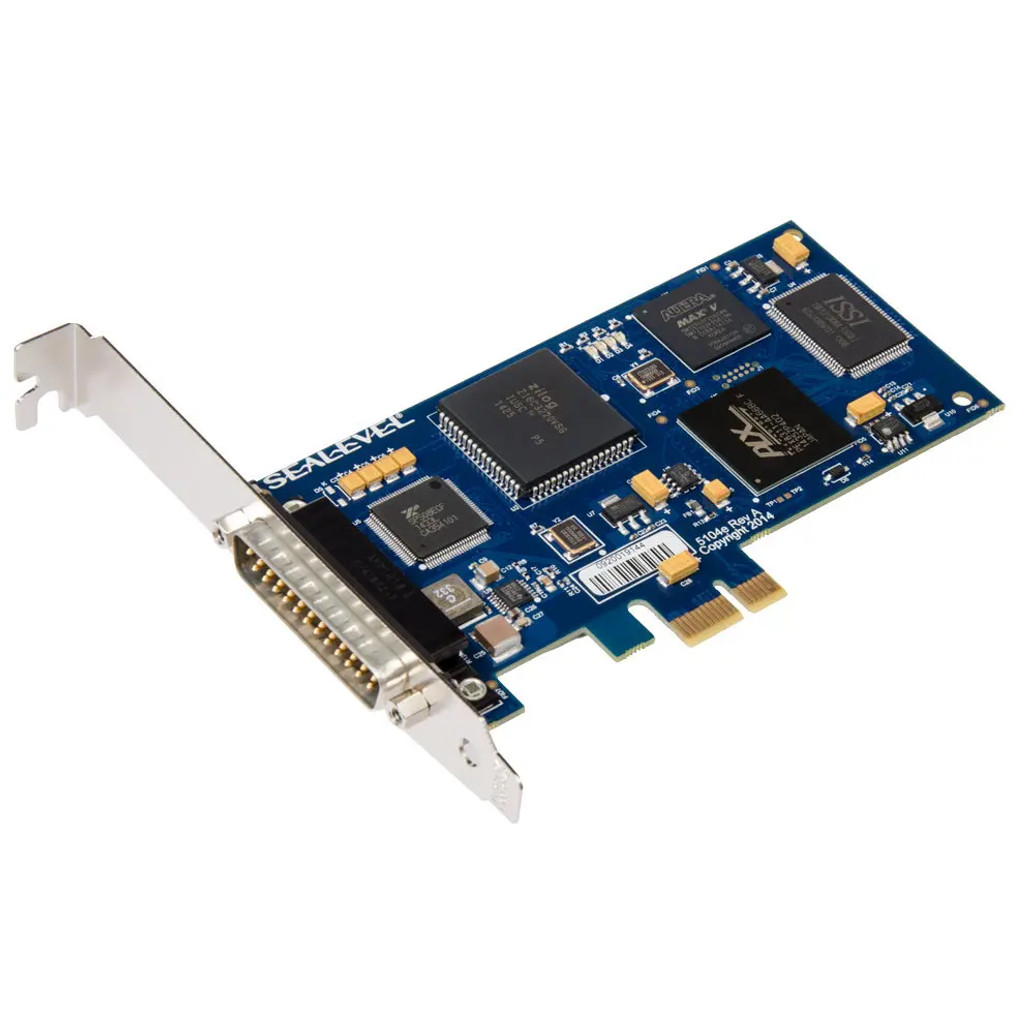

ACB-ULTRA.LPCIe

Now includes NABL Calibration Certificate.
Rs. 95250.00

The ACB-ULTRA.LPCIe is a high-speed synchronous serial interface offering a single port configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, or V.35. With burst data rates up to 10 Mbps, it is ideal for high-speed applications such as WAN connectivity, radar, and telemetry..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The ACB-ULTRA.LPCIe provides a flexible and reliable solution for synchronous serial communication. It is equipped with a Zilog Z16C32 IUSC™, supporting burst data rates up to 10 Mbps, and 256K onboard memory for handling high-speed data transfer. The adapter supports a wide range of serial interfaces, including RS-232, RS-422, RS-485, RS-530, RS-530A, and V.35, making it ideal for applications like WAN connectivity, radar, and telemetry. The DMA controller allows for efficient data transfer, and the SeaMAC driver ensures seamless software integration. Additionally, an OEM security feature is available to restrict unauthorized access, providing enhanced security for your application.

  • 1 high-speed synchronous serial port supporting RS-232, RS-422, RS-485, RS-530, RS-530A, and V.35

  • Uses Zilog® Z16C32 Integrated Universal Serial Controller (IUSC™) with on-chip DMA controller

  • 32-byte FIFO buffer with 256K onboard memory

  • Burst data rates up to 10 Mbps

  • DMA data transfer modes: Single buffer, pipelined, array, and link list

  • HDLC/SDLC protocols and support for Monosync, Bi-sync, and Raw modes

  • Sealevel SeaMAC synchronous serial driver for software support

  • Optional OEM security feature to prevent unauthorized use

  • Compatible with low-profile PCI Express slots

  • Standard profile bracket included

  • Product Name: ACB-ULTRA.LPCIe: RS-232/422/485/530/530A/V.35 Sync Adapter

  • Host Interface: PCI Express

  • Number of Ports: 1 (configurable for RS-232, RS-422, RS-485, RS-530, RS-530A, V.35)

  • Max Data Rate: 10 Mbps (burst mode)

  • Max Data Distance:

    • RS-232: 50 feet

    • RS-485: 4000 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: Zilog® Z16C32 IUSC™

  • Electrical Interface: RS-232, RS-422, RS-485, RS-530, RS-530A, V.35

  • Serial Connector(s): [Specific connectors not provided, but likely DB25 or DB9]

  • Software: SeaMAC synchronous serial driver

  • Brackets: Low profile (standard profile bracket included)

  • Security Feature: Optional OEM security feature

  • Humidity Range: 10-90% Relative Humidity, Non-Condensing

  • Storage Temperature: -50°C to 105°C (-58°F to 221°F)
